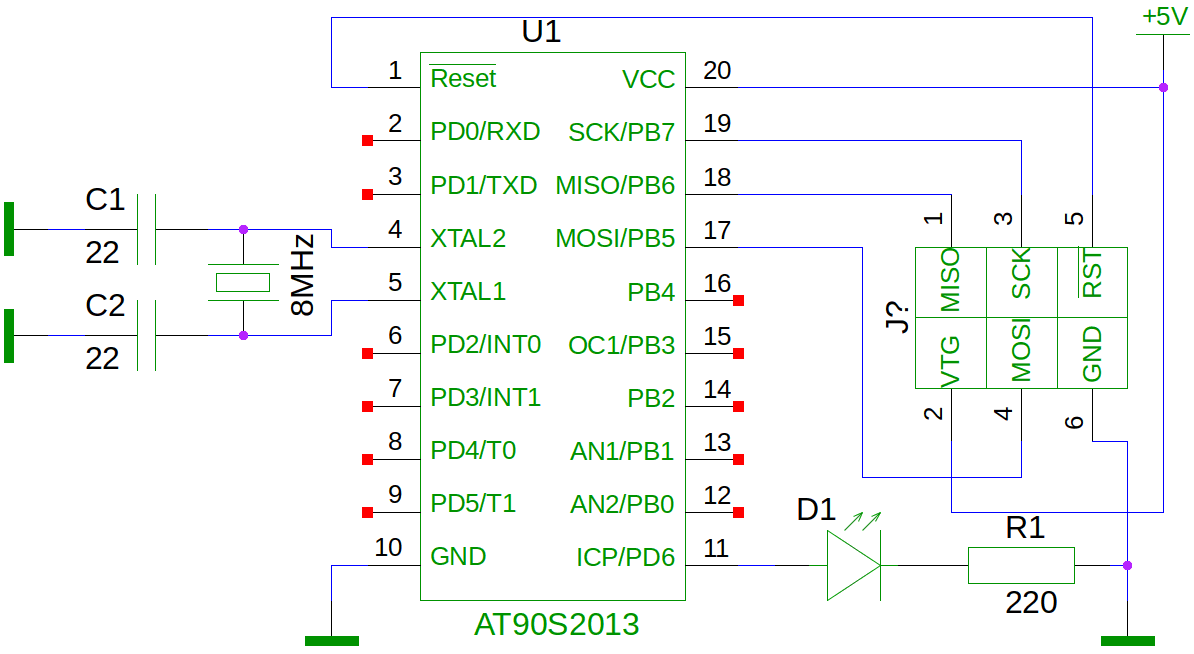

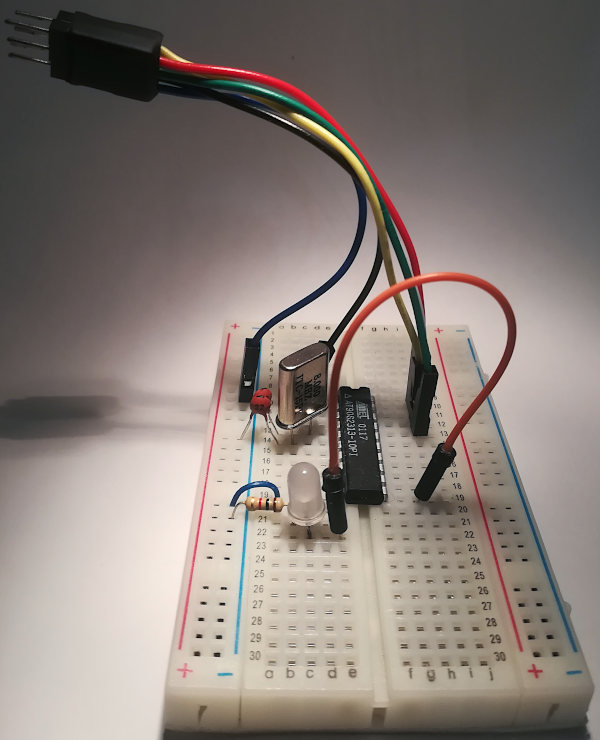

Пишем программу Blink и прошиваем микроконтроллер AT90S2013.

.include "2313def.inc"
.EQU pin=6
.org 0x00
            rjmp reset
            reti
            reti
            reti
            reti
            reti
            reti
            reti
            reti
            reti
            reti
.org 0x0b
reset:      sbi DDRD, pin
loop:       sbi PORTD, pin
            ldi r23, 1
            rcall delaytime

            cbi PORTD, pin
            ldi r23, 20
            rcall delaytime
            rjmp loop
delaytime:                      ; Задержка
            sbiw r25:r24,1
            sbci r23,0
            brcc delaytime
            ret

Лист. 1. Программа Blink для микроконтроллера AT90S2013.

Скомпилировать программу можно с помощью компилятора avra:

avra test.s

После компиляции файла test.s получим двоичный файл test.s.hex пригодный для загрузки в микроконтроллер.

avrdude -p2313 -cUSBASP -Uflash:w:test.s.hex:i -F
avrdude: warning at /home/dior/.avrduderc:56: part 8052 overwrites previous definition /home/dior/.avrduderc:5.

avrdude: warning: cannot set sck period. please check for usbasp firmware update.
avrdude: AVR device initialized and ready to accept instructions

Reading | ################################################## | 100% 0.00s

avrdude: Device signature = 0x1e9101 (probably 2313)
avrdude: NOTE: "flash" memory has been specified, an erase cycle will be performed
         To disable this feature, specify the -D option.
avrdude: erasing chip
avrdude: warning: cannot set sck period. please check for usbasp firmware update.
avrdude: reading input file "test.s.hex"
avrdude: writing flash (28 bytes):

Writing | ################################################## | 100% 0.14s

avrdude: 28 bytes of flash written
avrdude: verifying flash memory against test.s.hex:
avrdude: load data flash data from input file test.s.hex:
avrdude: input file test.s.hex contains 28 bytes
avrdude: reading on-chip flash data:

Reading | ################################################## | 100% 0.03s

avrdude: verifying ...
avrdude: 28 bytes of flash verified

avrdude: safemode: Sorry, reading back fuses was unreliable. I have given up and exited programming mode

avrdude done.  Thank you.

Shell

;***** THIS IS A MACHINE GENERATED FILE - DO NOT EDIT ********************
;***** Created: 2011-02-09 12:03 ******* Source: AT90S2313.xml ***********
;*************************************************************************
;* A P P L I C A T I O N   N O T E   F O R   T H E   A V R   F A M I L Y
;*
;* Number            : AVR000
;* File Name         : "2313def.inc"
;* Title             : Register/Bit Definitions for the AT90S2313
;* Date              : 2011-02-09
;* Version           : 2.35
;* Support E-mail    : Адрес электронной почты защищен от спам-ботов. Для просмотра адреса в вашем браузере должен быть включен Javascript.
;* Target MCU        : AT90S2313
;*
;* DESCRIPTION
;* When including this file in the assembly program file, all I/O register
;* names and I/O register bit names appearing in the data book can be used.
;* In addition, the six registers forming the three data pointers X, Y and
;* Z have been assigned names XL - ZH. Highest RAM address for Internal
;* SRAM is also defined
;*
;* The Register names are represented by their hexadecimal address.
;*
;* The Register Bit names are represented by their bit number (0-7).
;*
;* Please observe the difference in using the bit names with instructions
;* such as "sbr"/"cbr" (set/clear bit in register) and "sbrs"/"sbrc"
;* (skip if bit in register set/cleared). The following example illustrates
;* this:
;*
;* in    r16,PORTB             ;read PORTB latch
;* sbr   r16,(1<<PB6)+(1<<PB5) ;set PB6 and PB5 (use masks, not bit#)
;* out   PORTB,r16             ;output to PORTB
;*
;* in    r16,TIFR              ;read the Timer Interrupt Flag Register
;* sbrc  r16,TOV0              ;test the overflow flag (use bit#)
;* rjmp  TOV0_is_set           ;jump if set
;* ...                         ;otherwise do something else
;*************************************************************************

#ifndef _2313DEF_INC_
#define _2313DEF_INC_


;#pragma partinc 0

; ***** SPECIFY DEVICE ***************************************************
.device AT90S2313
;#pragma AVRPART ADMIN PART_NAME AT90S2313
.equ	SIGNATURE_000	= 0x1e
.equ	SIGNATURE_001	= 0x91
.equ	SIGNATURE_002	= 0x01

;#pragma AVRPART CORE CORE_VERSION V1


; ***** I/O REGISTER DEFINITIONS *****************************************
; NOTE:
; Definitions marked "MEMORY MAPPED"are extended I/O ports
; and cannot be used with IN/OUT instructions
.equ	SREG	= 0x3f
.equ	SPL	= 0x3d
.equ	GIMSK	= 0x3b
.equ	GIFR	= 0x3a
.equ	TIMSK	= 0x39
.equ	TIFR	= 0x38
.equ	MCUCR	= 0x35
.equ	TCCR0	= 0x33
.equ	TCNT0	= 0x32
.equ	TCCR1A	= 0x2f
.equ	TCCR1B	= 0x2e
.equ	TCNT1L	= 0x2c
.equ	TCNT1H	= 0x2d
.equ	OCR1AL	= 0x2a
.equ	OCR1AH	= 0x2b
.equ	ICR1L	= 0x24
.equ	ICR1H	= 0x25
.equ	WDTCR	= 0x21
.equ	EEAR	= 0x1e
.equ	EEDR	= 0x1d
.equ	EECR	= 0x1c
.equ	PORTB	= 0x18
.equ	DDRB	= 0x17
.equ	PINB	= 0x16
.equ	PORTD	= 0x12
.equ	DDRD	= 0x11
.equ	PIND	= 0x10
.equ	UDR	= 0x0c
.equ	USR	= 0x0b
.equ	UCR	= 0x0a
.equ	UBRR	= 0x09
.equ	ACSR	= 0x08


; ***** BIT DEFINITIONS **************************************************

; ***** PORTB ************************
; PORTB - Port B Data Register
.equ	PORTB0	= 0	; Port B Data Register bit 0
.equ	PB0	= 0	; For compatibility
.equ	PORTB1	= 1	; Port B Data Register bit 1
.equ	PB1	= 1	; For compatibility
.equ	PORTB2	= 2	; Port B Data Register bit 2
.equ	PB2	= 2	; For compatibility
.equ	PORTB3	= 3	; Port B Data Register bit 3
.equ	PB3	= 3	; For compatibility
.equ	PORTB4	= 4	; Port B Data Register bit 4
.equ	PB4	= 4	; For compatibility
.equ	PORTB5	= 5	; Port B Data Register bit 5
.equ	PB5	= 5	; For compatibility
.equ	PORTB6	= 6	; Port B Data Register bit 6
.equ	PB6	= 6	; For compatibility
.equ	PORTB7	= 7	; Port B Data Register bit 7
.equ	PB7	= 7	; For compatibility

; DDRB - Port B Data Direction Register
.equ	DDB0	= 0	; Port B Data Direction Register bit 0
.equ	DDB1	= 1	; Port B Data Direction Register bit 1
.equ	DDB2	= 2	; Port B Data Direction Register bit 2
.equ	DDB3	= 3	; Port B Data Direction Register bit 3
.equ	DDB4	= 4	; Port B Data Direction Register bit 4
.equ	DDB5	= 5	; Port B Data Direction Register bit 5
.equ	DDB6	= 6	; Port B Data Direction Register bit 6
.equ	DDB7	= 7	; Port B Data Direction Register bit 7

; PINB - Port B Input Pins
.equ	PINB0	= 0	; Port B Input Pins bit 0
.equ	PINB1	= 1	; Port B Input Pins bit 1
.equ	PINB2	= 2	; Port B Input Pins bit 2
.equ	PINB3	= 3	; Port B Input Pins bit 3
.equ	PINB4	= 4	; Port B Input Pins bit 4
.equ	PINB5	= 5	; Port B Input Pins bit 5
.equ	PINB6	= 6	; Port B Input Pins bit 6
.equ	PINB7	= 7	; Port B Input Pins bit 7


; ***** TIMER_COUNTER_0 **************
; TIMSK - Timer/Counter Interrupt Mask Register
.equ	TOIE0	= 1	; Timer/Counter0 Overflow Interrupt Enable

; TIFR - Timer/Counter Interrupt Flag register
.equ	TOV0	= 1	; Timer/Counter0 Overflow Flag

; TCCR0 - Timer/Counter0 Control Register
.equ	CS00	= 0	; Clock Select0 bit 0
.equ	CS01	= 1	; Clock Select0 bit 1
.equ	CS02	= 2	; Clock Select0 bit 2

; TCNT0 - Timer Counter 0
.equ	TCNT00	= 0	; Timer Counter 0 bit 0
.equ	TCNT01	= 1	; Timer Counter 0 bit 1
.equ	TCNT02	= 2	; Timer Counter 0 bit 2
.equ	TCNT03	= 3	; Timer Counter 0 bit 3
.equ	TCNT04	= 4	; Timer Counter 0 bit 4
.equ	TCNT05	= 5	; Timer Counter 0 bit 5
.equ	TCNT06	= 6	; Timer Counter 0 bit 6
.equ	TCNT07	= 7	; Timer Counter 0 bit 7


; ***** TIMER_COUNTER_1 **************
; TIMSK - Timer/Counter Interrupt Mask Register
.equ	TICIE1	= 3	; Timer/Counter1 Input Capture Interrupt Enable
.equ	OCIE1A	= 6	; Timer/Counter1 Output CompareA Match Interrupt Enable
.equ	TOIE1	= 7	; Timer/Counter1 Overflow Interrupt Enable

; TIFR - Timer/Counter Interrupt Flag register
.equ	ICF1	= 3	; Input Capture Flag 1
.equ	OCF1A	= 6	; Output Compare Flag 1A
.equ	TOV1	= 7	; Timer/Counter1 Overflow Flag

; TCCR1A - Timer/Counter1 Control Register A
.equ	PWM10	= 0	; Pulse Width Modulator Select Bit 0
.equ	PWM11	= 1	; Pulse Width Modulator Select Bit 1
.equ	COM1A0	= 6	; Comparet Ouput Mode 1A, bit 0
.equ	COM1A1	= 7	; Compare Output Mode 1A, bit 1

; TCCR1B - Timer/Counter1 Control Register B
.equ	CS10	= 0	; Clock Select bit 0
.equ	CS11	= 1	; Clock Select 1 bit 1
.equ	CS12	= 2	; Clock Select1 bit 2
.equ	CTC1	= 3	; Clear Timer/Counter1 on Compare Match
.equ	ICES1	= 6	; Input Capture 1 Edge Select
.equ	ICNC1	= 7	; Input Capture 1 Noise Canceler


; ***** WATCHDOG *********************
; WDTCR - Watchdog Timer Control Register
.equ	WDP0	= 0	; Watch Dog Timer Prescaler bit 0
.equ	WDP1	= 1	; Watch Dog Timer Prescaler bit 1
.equ	WDP2	= 2	; Watch Dog Timer Prescaler bit 2
.equ	WDE	= 3	; Watch Dog Enable
.equ	WDTOE	= 4	; RW
.equ	WDDE	= WDTOE	; For compatibility


; ***** EXTERNAL_INTERRUPT ***********
; GIMSK - General Interrupt Mask Register
.equ	INT0	= 6	; External Interrupt Request 0 Enable
.equ	INT1	= 7	; External Interrupt Request 1 Enable

; GIFR - General Interrupt Flag register
.equ	INTF0	= 6	; External Interrupt Flag 0
.equ	INTF1	= 7	; External Interrupt Flag 1


; ***** UART *************************
; UDR - UART I/O Data Register
.equ	UDR0	= 0	; UART I/O Data Register bit 0
.equ	UDR1	= 1	; UART I/O Data Register bit 1
.equ	UDR2	= 2	; UART I/O Data Register bit 2
.equ	UDR3	= 3	; UART I/O Data Register bit 3
.equ	UDR4	= 4	; UART I/O Data Register bit 4
.equ	UDR5	= 5	; UART I/O Data Register bit 5
.equ	UDR6	= 6	; UART I/O Data Register bit 6
.equ	UDR7	= 7	; UART I/O Data Register bit 7

; USR - UART Status Register
.equ	DOR	= 3	; Data overRun
.equ	FE	= 4	; Framing Error
.equ	UDRE	= 5	; UART Data Register Empty
.equ	TXC	= 6	; UART Transmit Complete
.equ	RXC	= 7	; UART Receive Complete

; UCR - UART Control Register
.equ	TXB8	= 0	; Transmit Data Bit 8
.equ	RXB8	= 1	; Receive Data Bit 8
.equ	CHR9	= 2	; 9-bit Characters
.equ	TXEN	= 3	; Transmitter Enable
.equ	RXEN	= 4	; Receiver Enable
.equ	UDRIE	= 5	; UART Data Register Empty Interrupt Enable
.equ	TXCIE	= 6	; TX Complete Interrupt Enable
.equ	RXCIE	= 7	; RX Complete Interrupt Enable

; UBRR - UART BAUD Rate Register
.equ	UBRR0	= 0	; UART Baud Rate Register bit 0
.equ	UBRR1	= 1	; UART Baud Rate Register bit 1
.equ	UBRR2	= 2	; UART Baud Rate Register bit 2
.equ	UBRR3	= 3	; UART Baud Rate Register bit 3
.equ	UBRR4	= 4	; UART Baud Rate Register bit 4
.equ	UBRR5	= 5	; UART Baud Rate Register bit 5
.equ	UBRR6	= 6	; UART Baud Rate Register bit 6
.equ	UBRR7	= 7	; UART Baud Rate Register bit 7


; ***** ANALOG_COMPARATOR ************
; ACSR - Analog Comparator Control And Status Register
.equ	ACIS0	= 0	; Analog Comparator Interrupt Mode Select bit 0
.equ	ACIS1	= 1	; Analog Comparator Interrupt Mode Select bit 1
.equ	ACIC	= 2	; Analog Comparator Input Capture Enable
.equ	ACIE	= 3	; Analog Comparator Interrupt Enable
.equ	ACI	= 4	; Analog Comparator Interrupt Flag
.equ	ACO	= 5	; Analog Comparator Output
.equ	ACD	= 7	; Analog Comparator Disable


; ***** CPU **************************
; SREG - Status Register
.equ	SREG_C	= 0	; Carry Flag
.equ	SREG_Z	= 1	; Zero Flag
.equ	SREG_N	= 2	; Negative Flag
.equ	SREG_V	= 3	; Two's Complement Overflow Flag
.equ	SREG_S	= 4	; Sign Bit
.equ	SREG_H	= 5	; Half Carry Flag
.equ	SREG_T	= 6	; Bit Copy Storage
.equ	SREG_I	= 7	; Global Interrupt Enable

; SPL - Stack Pointer Low
.equ	SP0	= 0	; Stack pointer bit 0
.equ	SP1	= 1	; Stack pointer bit 1
.equ	SP2	= 2	; Stack pointer bit 2
.equ	SP3	= 3	; Stack pointer bit 3
.equ	SP4	= 4	; Stack pointer bit 4
.equ	SP5	= 5	; Stack pointer bit 5
.equ	SP6	= 6	; Stack pointer bit 6
.equ	SP7	= 7	; Stack pointer bit 7

; MCUCR - MCU Control Register
.equ	ISC00	= 0	; Interrupt Sense Control 0 bit 0
.equ	ISC01	= 1	; Interrupt Sense Control 0 bit 1
.equ	ISC10	= 2	; Interrupt Sense Control 1 bit 0
.equ	ISC11	= 3	; Interrupt Sense Control 1 bit 1
.equ	SM	= 4	; Sleep Mode
.equ	SE	= 5	; Sleep Enable


; ***** PORTD ************************
; PORTD - Data Register, Port D
.equ	PORTD0	= 0	;
.equ	PD0	= 0	; For compatibility
.equ	PORTD1	= 1	;
.equ	PD1	= 1	; For compatibility
.equ	PORTD2	= 2	;
.equ	PD2	= 2	; For compatibility
.equ	PORTD3	= 3	;
.equ	PD3	= 3	; For compatibility
.equ	PORTD4	= 4	;
.equ	PD4	= 4	; For compatibility
.equ	PORTD5	= 5	;
.equ	PD5	= 5	; For compatibility
.equ	PORTD6	= 6	;
.equ	PD6	= 6	; For compatibility

; DDRD - Data Direction Register, Port D
.equ	DDD0	= 0	;
.equ	DDD1	= 1	;
.equ	DDD2	= 2	;
.equ	DDD3	= 3	;
.equ	DDD4	= 4	;
.equ	DDD5	= 5	;
.equ	DDD6	= 6	;

; PIND - Input Pins, Port D
.equ	PIND0	= 0	;
.equ	PIND1	= 1	;
.equ	PIND2	= 2	;
.equ	PIND3	= 3	;
.equ	PIND4	= 4	;
.equ	PIND5	= 5	;
.equ	PIND6	= 6	;


; ***** EEPROM ***********************
; EEAR - EEPROM Read/Write Access
.equ	EEARL	= EEAR	; For compatibility
.equ	EEAR0	= 0	; EEPROM Read/Write Access bit 0
.equ	EEAR1	= 1	; EEPROM Read/Write Access bit 1
.equ	EEAR2	= 2	; EEPROM Read/Write Access bit 2
.equ	EEAR3	= 3	; EEPROM Read/Write Access bit 3
.equ	EEAR4	= 4	; EEPROM Read/Write Access bit 4
.equ	EEAR5	= 5	; EEPROM Read/Write Access bit 5
.equ	EEAR6	= 6	; EEPROM Read/Write Access bit 6

; EEDR - EEPROM Data Register
.equ	EEDR0	= 0	; EEPROM Data Register bit 0
.equ	EEDR1	= 1	; EEPROM Data Register bit 1
.equ	EEDR2	= 2	; EEPROM Data Register bit 2
.equ	EEDR3	= 3	; EEPROM Data Register bit 3
.equ	EEDR4	= 4	; EEPROM Data Register bit 4
.equ	EEDR5	= 5	; EEPROM Data Register bit 5
.equ	EEDR6	= 6	; EEPROM Data Register bit 6
.equ	EEDR7	= 7	; EEPROM Data Register bit 7

; EECR - EEPROM Control Register
.equ	EERE	= 0	; EEPROM Read Enable
.equ	EEWE	= 1	; EEPROM Write Enable
.equ	EEMWE	= 2	; EEPROM Master Write Enable



; ***** LOCKSBITS ********************************************************
.equ	LB1	= 0	; Lockbit
.equ	LB2	= 1	; Lockbit


; ***** FUSES ************************************************************
; LOW fuse bits



; ***** CPU REGISTER DEFINITIONS *****************************************
.def	XH	= r27
.def	XL	= r26
.def	YH	= r29
.def	YL	= r28
.def	ZH	= r31
.def	ZL	= r30



; ***** DATA MEMORY DECLARATIONS *****************************************
.equ	FLASHEND	= 0x03ff	; Note: Word address
.equ	IOEND	= 0x003f
.equ	SRAM_START	= 0x0060
.equ	SRAM_SIZE	= 128
.equ	RAMEND	= 0x00df
.equ	XRAMEND	= 0x0000
.equ	E2END	= 0x007f
.equ	EEPROMEND	= 0x007f
.equ	EEADRBITS	= 7
;#pragma AVRPART MEMORY PROG_FLASH 2048
;#pragma AVRPART MEMORY EEPROM 128
;#pragma AVRPART MEMORY INT_SRAM SIZE 128
;#pragma AVRPART MEMORY INT_SRAM START_ADDR 0x60





; ***** INTERRUPT VECTORS ************************************************
.equ	INT0addr	= 0x0001	; External Interrupt Request 0
.equ	INT1addr	= 0x0002	; External Interrupt Request 1
.equ	ICP1addr	= 0x0003	; Timer/Counter1 Capture Event
.equ	OC1addr	= 0x0004	; Timer/Counter1 Compare Match
.equ	OVF1addr	= 0x0005	; Timer/Counter1 Overflow
.equ	OVF0addr	= 0x0006	; Timer/Counter0 Overflow
.equ	URXCaddr	= 0x0007	; UART, Rx Complete
.equ	UDREaddr	= 0x0008	; UART Data Register Empty
.equ	UTXCaddr	= 0x0009	; UART, Tx Complete
.equ	ACIaddr	= 0x000a	; Analog Comparator

.equ	INT_VECTORS_SIZE	= 11	; size in words

;#pragma AVRPART CORE INSTRUCTIONS_NOT_SUPPORTED break

#endif  /* _2313DEF_INC_ */

; ***** END OF FILE ******************************************************

Лист. 2. Включаемый файл 2313def.inc

Рис. 1. Принципиальная электрическая схема подключения микроконтроллера к программатору.

Рис. 2. Макет схемы для программирования микроконтроллера AT90S2313
