Orange Pi 3 LTS

Orange Pi 3 LTS — это микро-компьютер с двухдиапазонным Wi-Fi и Bluetooth 5.0. Размер платы 56X85мм. Orange Pi 3 LTS использует SoC Allwinner H6, имеет 2 ГБ LPDDR3 SDRAM и 8 ГБ EMMC. Он может работать под управлением Android 9, Ubuntu, Debian. Orange Pi 3 LTS имеет выход HDMI, 26-контактный разъем, 1Gbps Ethernet, USB 3.0, 2хUSB 2.0, питается через Type-C.

fmn

CPU

Allwinner H6

Quad-core 64-bit 1.8GHz high-performance Cortex-A53 processor
GPU
  • High-performance multi-core GPU Mali T720
  • OpenGL ES3.1/3.0/2.0/1.1
  • Microsoft DirectX 11 FL9_3
  • ASTC(Adaptive Scalable Texture Compression)
  • Floating point operation greater than 70 GFLOPS
 Power management chip  AXP805
 RAM  2GB LPDDR3 (shared with GPU)
Onboard Storage
  • Micro SD card slot
  • 8GB EMMC Flash
 Onboard Network
  • YT8531C Chip
  • Support 10/100M/1000M Ethernet
 Onboard WiFi+Bluetooth
  • Support IEEE 802.11 a/b/g/n/ac
  • Support BT5.0
 Video Output
  • HDMI 2.0a
  • TV CVBS Output
 Audio output
  • HDMI Output
  • 3.5mm Audio Port
 Power Source  5V3A Type-C
USB
  • 1* USB 3.0 HOST
  • 2* USB 2.0 HOST
Low-level peripherals
  • 26pin connector with1
  • I2C
  • SPI
  • UART
  • Multiple GPIO Ports
Debug serial port UART-TX-RX & GND
Button Power Button (SW4)
LED Power LED& Status LED
IR Receiver Support IR Remote Control
Supported OS
  • Android 9.0
  • Ubuntu
  • Debian
PCB size

60x93.5mm (56x85)mm

Табл. 1.

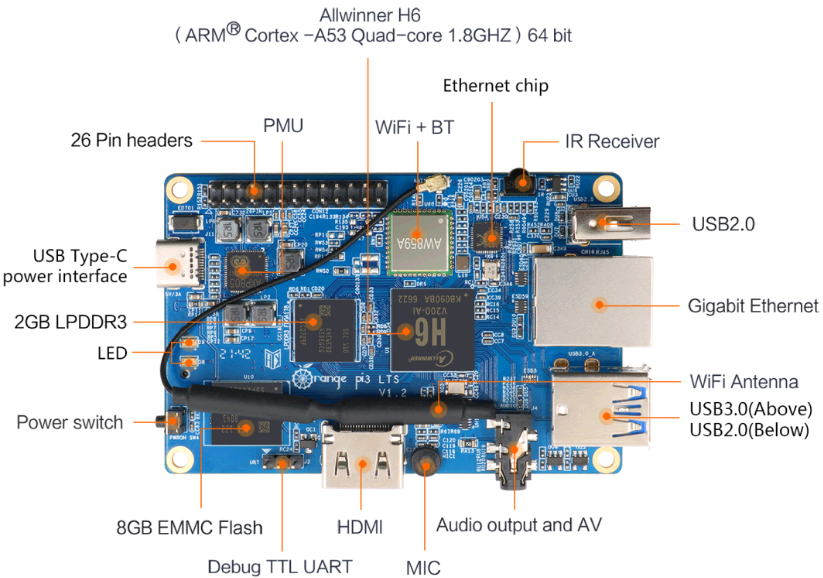

Рис. 1.

  ___  ____  _   _____   _   _____ ____
 / _ \|  _ \(_) |___ /  | | |_   _/ ___|
| | | | |_) | |   |_ \  | |   | | \___ \
| |_| |  __/| |  ___) | | |___| |  ___) |
 \___/|_|   |_| |____/  |_____|_| |____/

Welcome to Armbian 23.02.2 Jammy with Linux 5.15.93-sunxi64

System load:   30%           	Up time:       2 min
Memory usage:  22% of 1.94G  	IP:	       192.168.1.31
CPU temp:      57°C           	Usage of /:    9% of 58G

[ 0 security updates available, 2 updates total: apt upgrade | Kernel and firmware upgrades disabled: armbian-config ]
Last check: 2023-05-08 22:01

bxfcbnbn

neofetch
                                 dior@orangepi3-lts
                                 ------------------
      █ █ █ █ █ █ █ █ █ █ █      OS: Armbian (23.02.2) aarch64
     ███████████████████████     Host: OrangePi 3 LTS
   ▄▄██                   ██▄▄   Kernel: 5.15.93-sunxi64
   ▄▄██    ███████████    ██▄▄   Uptime: 5 mins
   ▄▄██   ██         ██   ██▄▄   Packages: 1566 (dpkg)
   ▄▄██   ██         ██   ██▄▄   Shell: bash 5.1.16
   ▄▄██   ██         ██   ██▄▄   Resolution: 1920x1080
   ▄▄██   █████████████   ██▄▄   Terminal: /dev/pts/1
   ▄▄██   ██         ██   ██▄▄   CPU: (4) @ 1.800GHz
   ▄▄██   ██         ██   ██▄▄   Memory: 491MiB / 1989MiB
   ▄▄██   ██         ██   ██▄▄
   ▄▄██                   ██▄▄
     ███████████████████████
      █ █ █ █ █ █ █ █ █ █ █

hfdh

7z b

7-Zip [64] 16.02 : Copyright (c) 1999-2016 Igor Pavlov : 2016-05-21
p7zip Version 16.02 (locale=ru_RU.UTF-8,Utf16=on,HugeFiles=on,64 bits,4 CPUs LE)

LE
CPU Freq: - - - - - - - - -

RAM size:    1989 MB,  # CPU hardware threads:   4
RAM usage:    882 MB,  # Benchmark threads:      4

                       Compressing  |                  Decompressing
Dict     Speed Usage    R/U Rating  |      Speed Usage    R/U Rating
         KiB/s     %   MIPS   MIPS  |      KiB/s     %   MIPS   MIPS

22:       2768   351    768   2693  |      75292   398   1612   6424
23:       2675   361    756   2726  |      72193   399   1565   6247
24:       2620   372    758   2817  |      69280   399   1526   6082
25:       2469   372    758   2819  |      66790   399   1489   5944
----------------------------------  | ------------------------------
Avr:             364    760   2764  |              399   1548   6174
Tot:             381   1154   4469

Screen 3. 7Zip test.

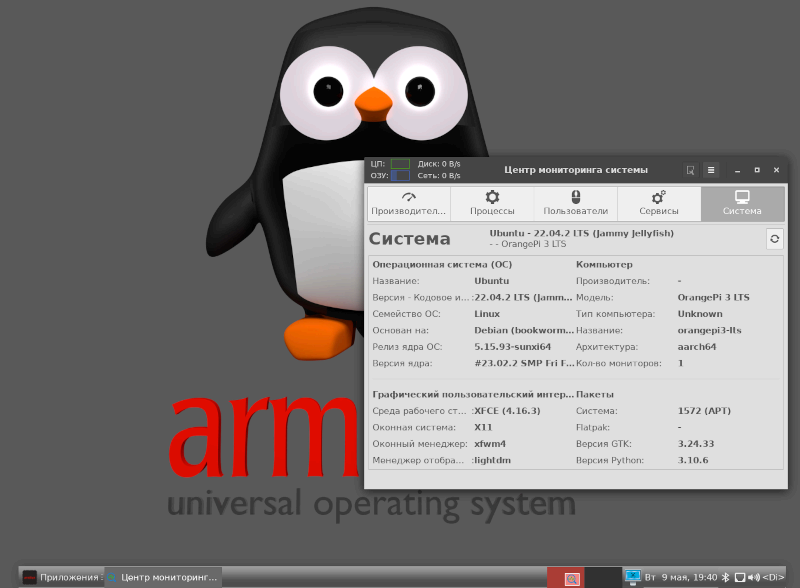

Рис. 1. Рабочий стол XFSE.
